Flexible Soft Pvc Insulated Terminal Sleeve Motorcycle Wring Caps For SURE Plug

Product Categories

Yueqing Kuaili Electric Terminal Appliance Factory

Contact Now

Flexible Soft Pvc Insulated Terminal Sleeve Motorcycle Wring Caps For SURE Plug

Name: Flexible Soft Pvc Insulated Terminal Sleeve Motorcycle Wring Caps For SURE Plug
Brand: KUAILI
Price: 1 USD

Brand Name : KUAILI

Model Number : DF

Certification : ROSH

Place of Origin : CHINA

MOQ : 2000pcs

Price : consult

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000000pcs per week

Delivery Time : 5~30days According to the order quantity

Packaging Details : 100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.

Material : Soft PVC

Color : red, black blue

Temperature : 105℃

Application : For full insulation of uninsulated female spade connectors.

Surface Finishing : Clean, Smooth, Transparent, No Bubble

Contact Now

Hot selling flexible soft pvc insulated terminal sleeve motorcycle wring caps

Product Description:
The DF series PVC wire connector sleeves are used for SURE Plug and its receptacle.
They are for flag-type wire terminals.

Material:
UL recognized soft PVC

Certificates:
UL; REACH; RoHS

Color:
Transparent, White, Black, Green, Red, Brown, Blue, and many others

Customization:
The product length(L), wall thickness(T) and color can be customized upon request.
We can supply a wide range of products according to customer specifications

Product Property:

	Item	Test Standard	Test Method	Test Result
1	Appearance	Clean, Smooth, Transparent, No Bubble	Visual Inspection	Pass
2	Aging Test	168Hrs@136℃ without aging	Aging Box	Pass
3	Insulation Resistance	DC 500V, Insulation Resistance R≥200MΩ	Insulation Tesistance Tester	Pass
4	Dielectric Withstand Voltage Test	AC 2500V/Min (5mA) No Breakdown	Dielectric Withstand Voltage Tester	Pass
5	Corrosion Resistance	Company standard: Q/HT-2004	Corrosion Device	Pass
6	Flammability Standard	UL 94V-0	Flame Burning	Pass

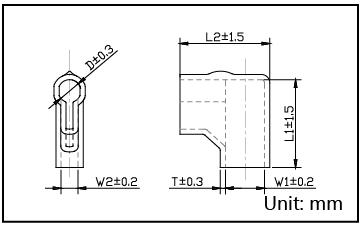

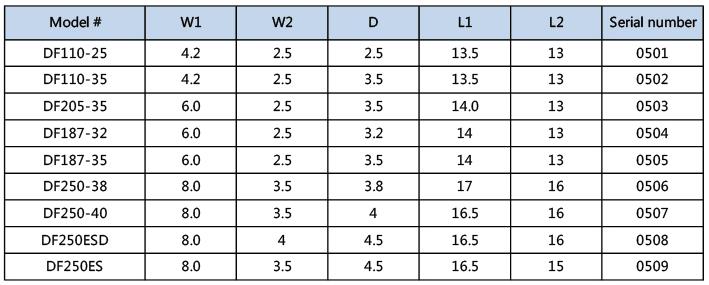

Dimensions and Diagram:

Flexible Soft Pvc Insulated Terminal Sleeve Motorcycle Wring Caps For SURE Plug

Our Services
Production
We accept OEM orders, our daily production capability of 4 million pcs is able to meet most urgent orders, and our regular lead time is 10 days.

R&D
We offer free samples and we are flexible in custom molding for new products.
We can not only make new products according to customer design but also design for customer’s applications.

Product Tags:

electrical wire end caps

vinyl wire end cap

China Flexible Soft Pvc Insulated Terminal Sleeve Motorcycle Wring Caps For SURE Plug wholesale

Flexible Soft Pvc Insulated Terminal Sleeve Motorcycle Wring Caps For SURE Plug Images
